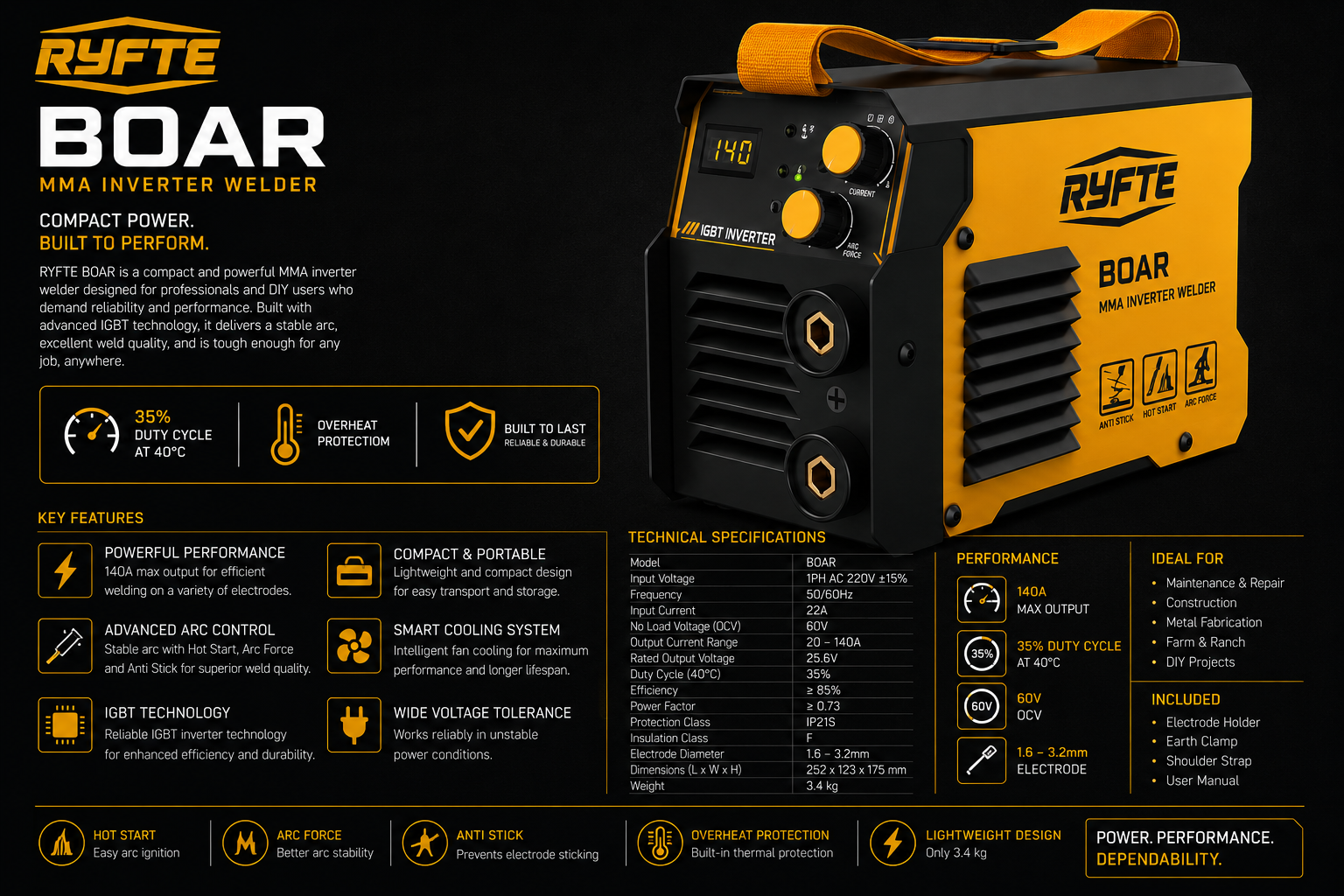

MMA Inverter Welder
BOAR
Compact power. Built to perform.
RYFTE BOAR is a compact and powerful MMA inverter welder designed for professionals and DIY users who demand reliability and performance. Built with advanced IGBT technology, it delivers a stable arc, excellent weld quality, and is tough enough for any job, anywhere.
Key features
Powerful performance
140A max output for efficient welding on a variety of electrodes.
Compact & portable
Lightweight and compact design for easy transport and storage.
Advanced arc control
Stable arc with Hot Start, Arc Force and Anti-Stick for superior weld quality.
Smart cooling system
Intelligent fan cooling for maximum performance and longer lifespan.
IGBT technology
Reliable IGBT inverter technology for enhanced efficiency and durability.
Wide voltage tolerance
Works reliably in unstable power conditions.
Ideal for
In the box
- Electrode Holder
- Earth Clamp
- Shoulder Strap
- User Manual
Technical specifications
| Model | BOAR |
| Input Voltage | 1PH AC 220V ±15% |
| Frequency | 50/60Hz |
| Input Current | 22A |
| No Load Voltage (OCV) | 60V |
| Output Current Range | 20 – 140A |
| Rated Output Voltage | 25.6V |
| Duty Cycle (40°C) | 35% |
| Efficiency | ≥ 85% |
| Power Factor | ≥ 0.73 |
| Protection Class | IP21S |
| Insulation Class | F |
| Electrode Diameter | 1.6 – 3.2mm |
| Dimensions (L x W x H) | 252 x 123 x 175 mm |
| Weight | 3.4 kg |
