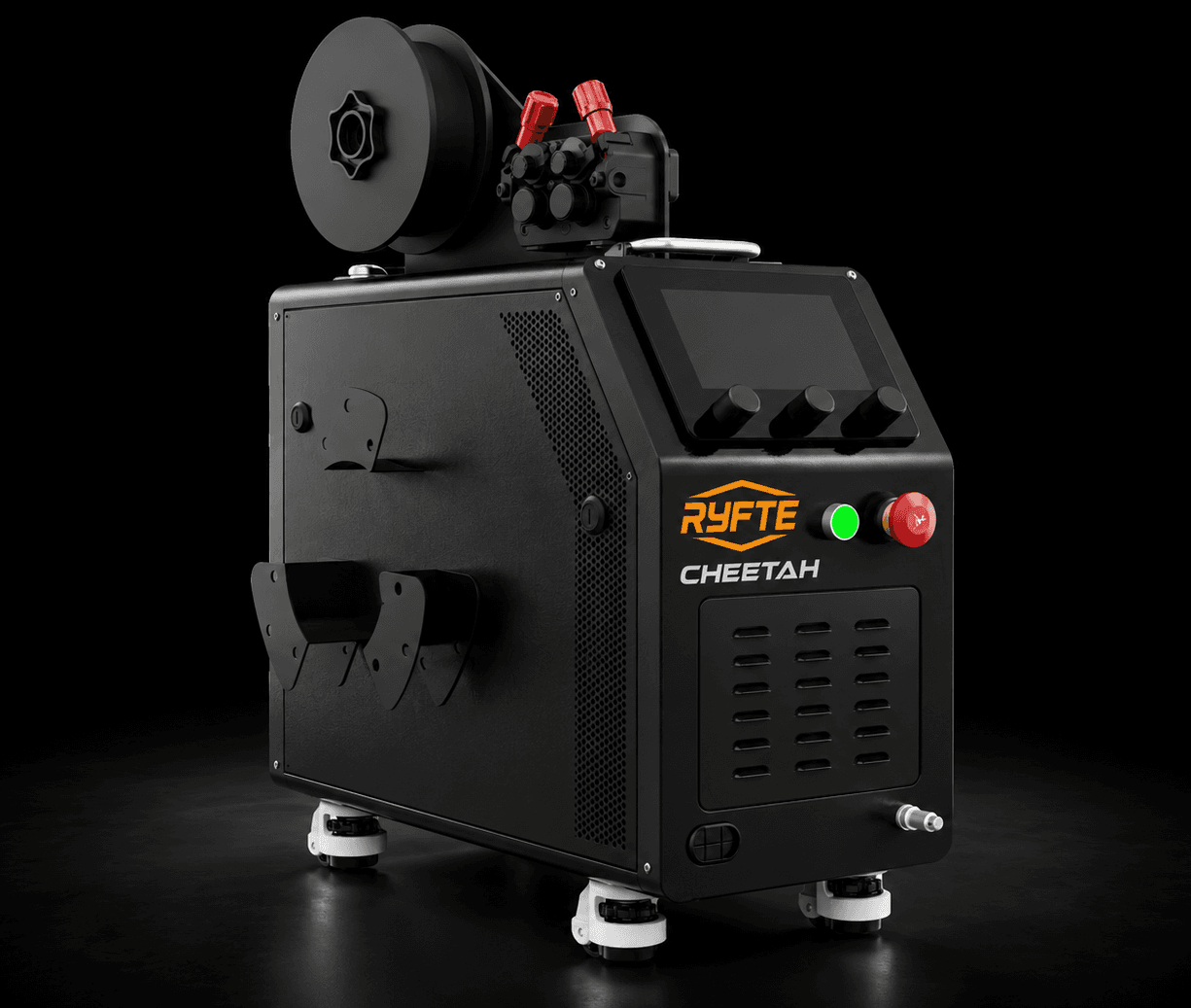

Handheld Fiber Laser Welder
CHEETAH AIR MINI 5
Precision welding, up to 5mm penetration.
RYFTE CHEETAH AIR MINI 5 steps up to 1500W for thicker material and faster travel speeds, while staying air-cooled and portable. The "5" is its rated penetration depth: up to 5mm in a single pass. Same integrated wire feeder and handheld torch as the rest of the Cheetah Air Mini line, for fabricators who need more power without a water-cooling setup.
Key features
Up to 5mm penetration
Rated single-pass penetration depth — deeper than the Air Mini 3.
Fiber laser source
Fast, focused welding with minimal heat-affected zone and spatter.
Top-mounted wire feeder
Integrated feeder on top of the unit for gap-filling and dissimilar-thickness joints.
Air-cooled
No external chiller required — simpler setup, lower running cost.
Aluminum precision torch
Aircraft-grade aluminum torch body with an integrated status indicator light and QBH quick-connect interface.
Ideal for
Optional accessories
Cheetah WS15
Optional wire feeder head — upgrades wire spool capacity from the standard 5kg to 15kg for longer unattended runs and fewer spool changes. Drop-in compatible across the full Cheetah Air Mini range.
Technical specifications
| Series | Cheetah Air Mini |
| Output Power | 1500 W |
| Max Penetration Depth | 5 mm |
| Cooling | Air-cooled |
| Laser Type | Fiber |
| Wire Feeder | Integrated, top-mounted |
| Wire Spool Capacity | 5 kg (15 kg with Cheetah WS15) |
| Torch Housing | Aircraft-grade aluminum |
| Torch Interface | QBH |
| Status Indicator Light | Integrated on torch head |
| Torch Cooling | Air / Water cooling compatible |
| Applicable Wavelength | 1070 nm (±20 nm) |
| Collimating Focal Length | 60 mm |
| Focusing Focal Length | 150 mm |
| Scanning Width (Welding) | 0 – 6 mm |
| Protective Gas | Nitrogen, Argon |
| Torch Net Weight | 0.55 kg |
