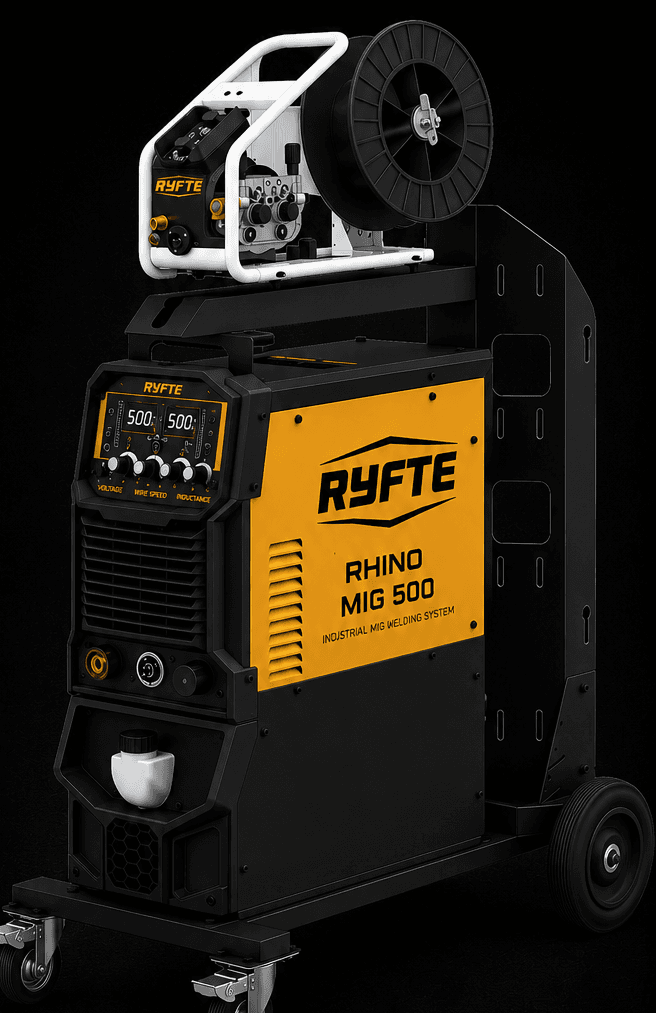

Industrial MIG Welding System
RHINO MIG 500 PRO
Max power. Total control. Built for heavy duty.

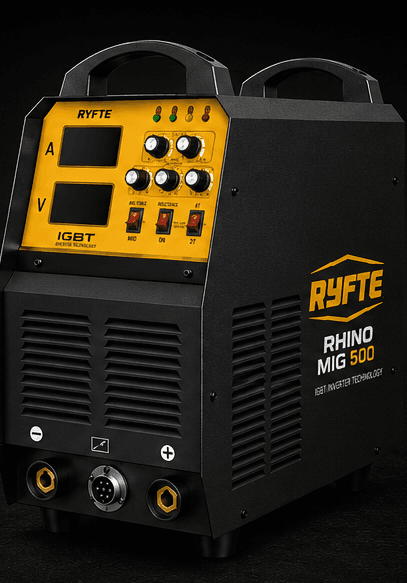

RYFTE RHINO MIG 500 PRO is the cart-mounted, industrial-grade step up from the standard RHINO MIG 500 — a high-performance MIG welding system engineered for maximum output, reliability and durability. Designed for demanding applications in heavy fabrication, shipbuilding, structural steel, and industrial production.
Key features
500A max output
High power output for the toughest industrial welding applications.
100% duty cycle
Continuous welding performance at 500A for maximum productivity and reliability.
Water cooling option
Integrated water cooling system option for superior performance at high duty cycles.
400V 3PH input
Three phase power input for stable arc, high efficiency and industrial reliability.
Cart-mounted
Wheeled industrial cart with top-mounted wire feeder cage — built for the shop floor.
Heavy duty built
Robust and durable design built to withstand harsh industrial environments.
Ideal for

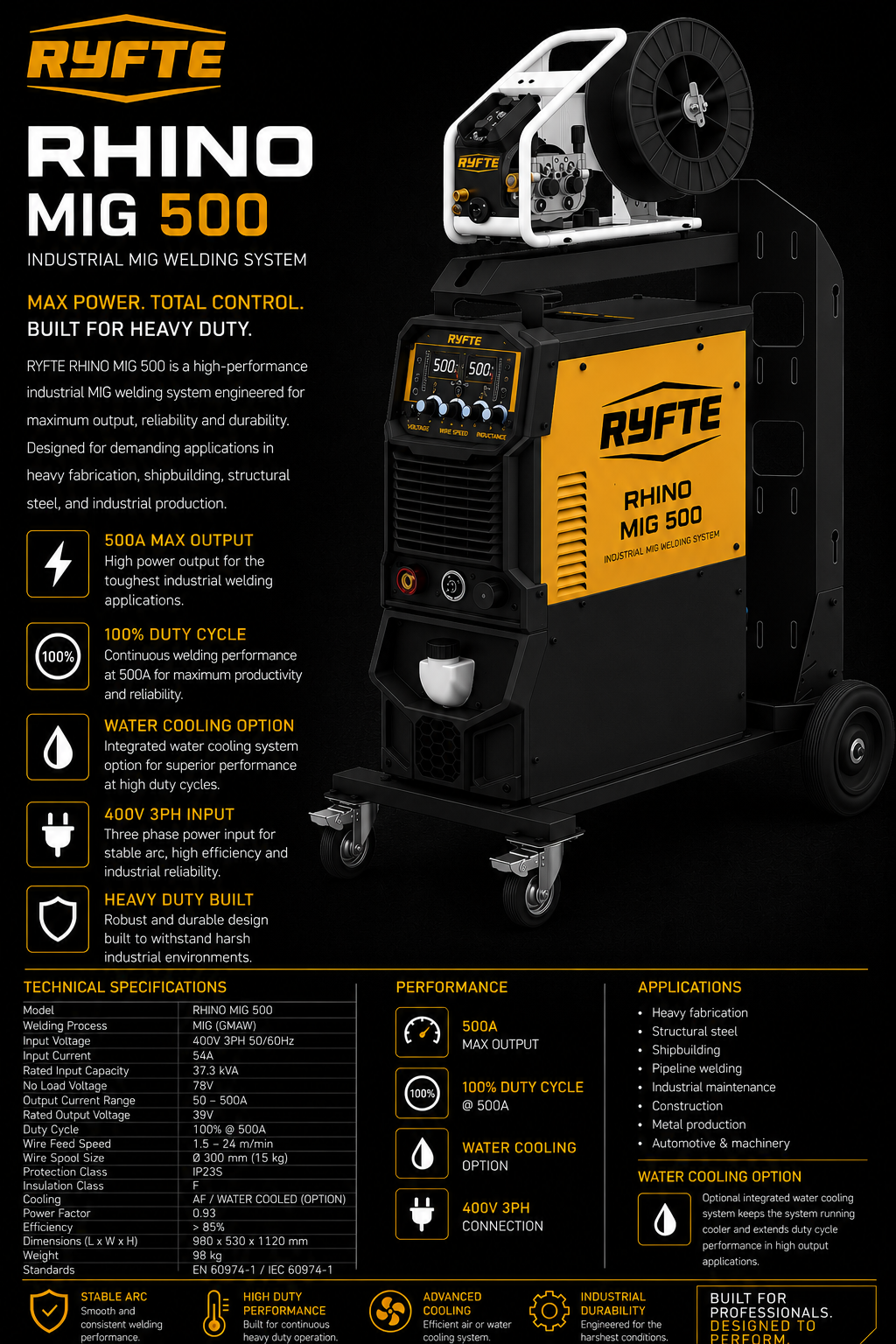

Technical specifications
| Model | RHINO MIG 500 PRO |
| Welding Process | MIG (GMAW) |
| Input Voltage | 400V 3PH 50/60Hz |
| Input Current | 54A |
| Rated Input Capacity | 37.3 kVA |
| No Load Voltage | 78V |
| Output Current Range | 50 – 500A |
| Rated Output Voltage | 39V |
| Duty Cycle | 100% @ 500A |
| Wire Feed Speed | 1.5 – 24 m/min |
| Wire Spool Size | Ø 300 mm (15 kg) |
| Protection Class | IP23S |
| Insulation Class | F |
| Cooling | AF / Water cooled (option) |
| Power Factor | 0.93 |
| Efficiency | > 85% |
| Dimensions (L x W x H) | 980 x 530 x 1120 mm |
| Weight | 98 kg |
